For ZSK tubular arm embroidery machines with MSCI or MSCF control. The conversion kit is suitable for ZSK embroidery machines with 1 head or 2 heads. It includes the components required to adapt the Y-drive in machines of this control generation. Note: The conversion kit replaces the wiring and the stepper motors mounted on the moving housing that drives the lateral movement of the pantograph. (see image) Contents of the conversion kit 1 Stepper Motor with Connection Cable 1 Y-Drive Connection Box, complete with Wiring 2 Heat-Shrink Tubes Mounting Brackets and Installation Hardware JF 0111 - 500 | JF 0211 - 495 | JAF 0115 - 500 | JAF 0215 - 495 | JAFA 0112 - 500 | JAFA 0212 - 495 | JNFA 0112 - 500 | JNFA 0212 - 495

For ZSK tubular arm embroidery machines with MSCI or MSCF control. The conversion kit is suitable for ZSK embroidery machines with 4 heads with a head spacing of 400/495 mm or 6 embroidery heads with a head spacing of 400 mm.. It includes the components required to adapt the Y-drive in machines of this control generation. Note: The conversion kit replaces the wiring and the stepper motors mounted on the moving housing that drives the lateral movement of the pantograph. (see image) Contents of the conversion kit 2 Stepper Motor with Connection Cable 2 Y-Drive Connection Box, complete with Wiring 2 Heat-Shrink Tubes Mounting Brackets and Installation Hardware JF 0411 - 400 | JF 0411 - 495 | JF 0611 - 400 | JNF 0411 - 495 | JAF 0415 - 400 | JAF 0415 - 495 | JAF 0615 - 400 | JNF 0415 - 495 | JNF 0615 - 400 | JAFA 0609 - 400 | JAFA 0412 - 400 | JAFA 0412 - 495 | JAFA 0612 - 400 | JNFA 0412 - 400 | JNFA 0412 - 495 | JNFA 0612 - 400

For ZSK tubular arm embroidery machines with MSCI or MSCF control. The conversion kit is suitable for ZSK embroidery machines with 6 heads with 495 mm head spacing and 8 heads with 400 mm head spacing. It includes the components required to adapt the Y-drive in machines of this control generation. Note: The conversion kit replaces the wiring and the stepper motors mounted on the moving housing that drives the lateral movement of the pantograph. (see image) JF 0611-495 | JF 0811-400 | JNF 0611-495 | JNF 0811-400 | JAF 0615 - 495 | JAF 0815 - 400 | JNF 0615-495 | JNF 0815-400 | JAFA 0612-495 | JAFA 0812-400 | JNFA 0612-495 | JNFA 0812-400

MOTOR TYPE 402 887

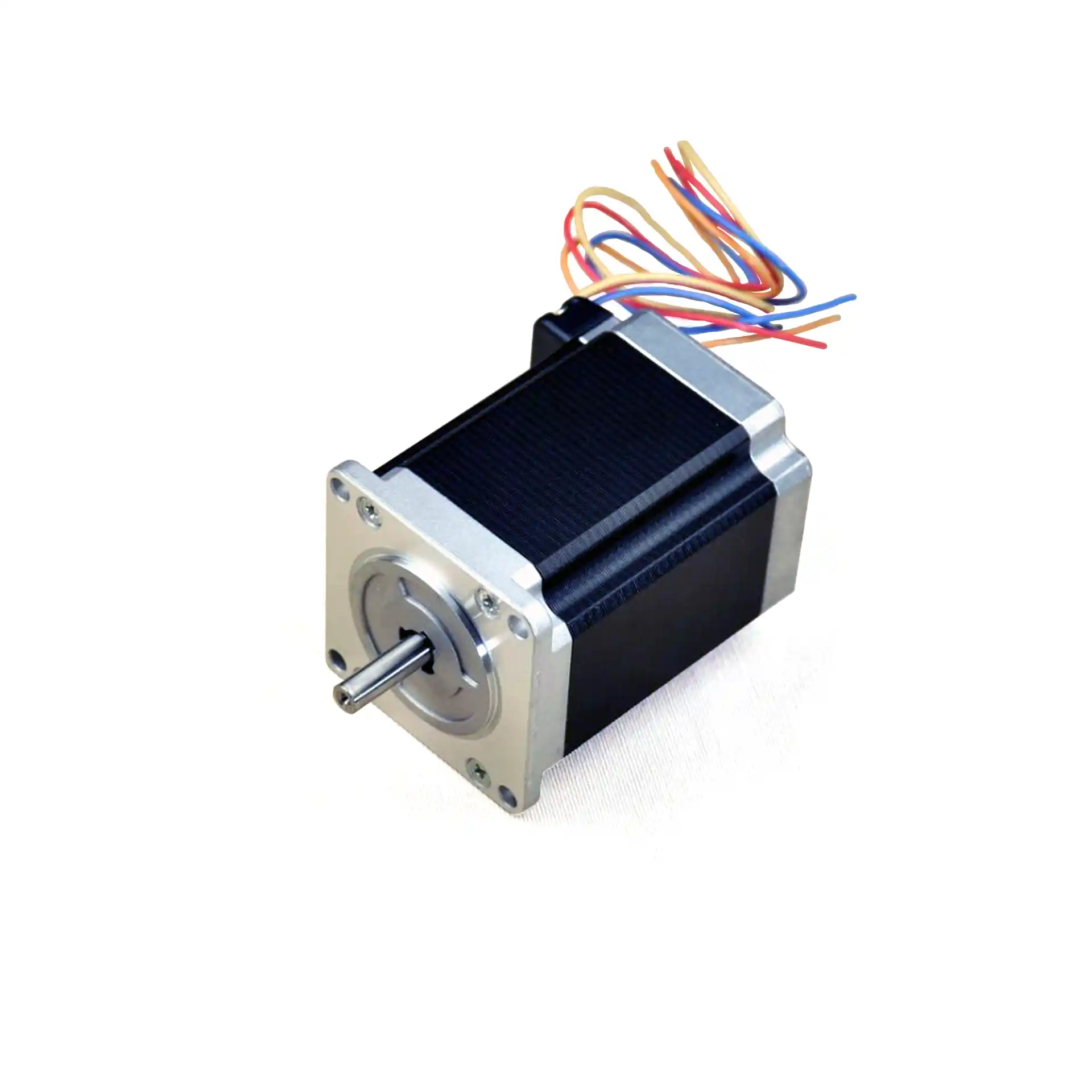

For: pantograph drive – SPRINT 4 and SPRINT 5.1. Stepper Motor (ZSK order number 396 272 022). Fitted in → ZSK tubular arm embroidery machine SPRINT 4 – spare part catalogue (PDF), assemblies: Pantograph-Antrieb für Seite – PDF page 51 Fitted in → ZSK tubular arm embroidery machine SPRINT 5.1 – spare part catalogue (PDF), assemblies: Pantograph-Antrieb für Seite – PDF page 53 Also included in the 3D spare part catalogue: ZSK RACER COMPACT TWIN, SPRINT 6, SPRINT 7, SPRINT 7 18N 1400-400, SPRINT 7 18N 600-400, SPRINT 7 L MAX, SPRINT 8 and SPRINT NX. You will find the 3D models and all spare part catalogues at → spare part catalogues.

Stepper motor - Two-Phase 4A Note: This motor can be used as an alternative to the stepper motor item no. 396.272.008, which is no longer available.

Stepper motor MSCI/F. The stepper motor for MSCI/F with item number 396.272.008 is no longer available. Note: As an alternative, the stepper motor with item number 396.272.023 is available.

For: pantograph drive – MCF, SCF, BASIC and more. Stepper Motor N42 SSHS-LSS-NS-02 (ZSK order number 396 272 010). Fitted in the following spare part catalogues (PDF): ZSK flatbed series – standard parts (BASIC) – assemblies X-Drive and Y-Drive, PDF pages 45, 51 ZSK tubular arm embroidery machines JAF/JNF – assembly Antrieb, Getriebe 2 : 1, PDF page 99 ZSK flatbed embroidery machines MCF/LBF/LCF/XCF/XGF/YCF/YGF – assemblies X-Drive and Y-Drive, PDF pages 99, 111 ZSK embroidery machines MCSW/xCSL – assembly Pantograph-Antriebsmotor für Tiefe, PDF page 89 ZSK combination embroidery machines MCZ/XCZ/XGZ/YCZ – assemblies X-Drive and Y-Drive, PDF pages 97, 105 ZSK flatbed embroidery machine SCF – assembly Pantograph drive motor for depth movement, PDF page 65 ZSK combination embroidery machine SCZ – assembly Pantograph drive motor for depth movement, PDF page 95

STEPPER MOTOR WITH BOARD

This drive is no longer available for ZSK embroidery machines. Recommended ReplacementAs a replacement, we recommend the following Y-drive conversion kits: Conversion Kit Y-Drive for MSCI/F Control - 1 or 2 heads Conversion Kit Y-Drive for MSCI/F Control - 4 or 6 heads Conversion Kit Y-Drive for MSCI/F Control - 6 or 8 heads
