ZSK F-Head | ZSK Shop spare parts

Product number: 270003342
Product number 2: Z-000-0058

Bolt

Product number: 270999207
Product number 2: Z-000-0084

Bracket (left)

Product number: 270020214
Product number 2: Z-000-0078

Bracket (left)

Bracket (right)

Product number: 270020213
Product number 2: Z-000-0077

Bracket (right)

Cam Disk ''P 3''

Product number: 270003391
Product number 2: Z-000-0718

For: upper part – flatbed, tubular arm, special series. Cam Disk ''P 3'' (ZSK order number 270 003 391). Fitted in ZSK flatbed embroidery machines, tubular arm embroidery machines and special embroidery machines. flatbed embroidery machines: SGFA/MxFx/LxFx/XxFx/YxFA/ZxFA tubular arm embroidery machines: JAF/JNF | JAFA/JNFA | SPRINT 4 | SPRINT 5.1 special embroidery machines: SGZA | YGZA | ZBZA | JATA | SGVA | JCZA You will find the spare part catalogue for your machine at → spare part catalogues.

Cam Disk "P 11"

Product number: 270999496
Product number 2: Z-001-3727

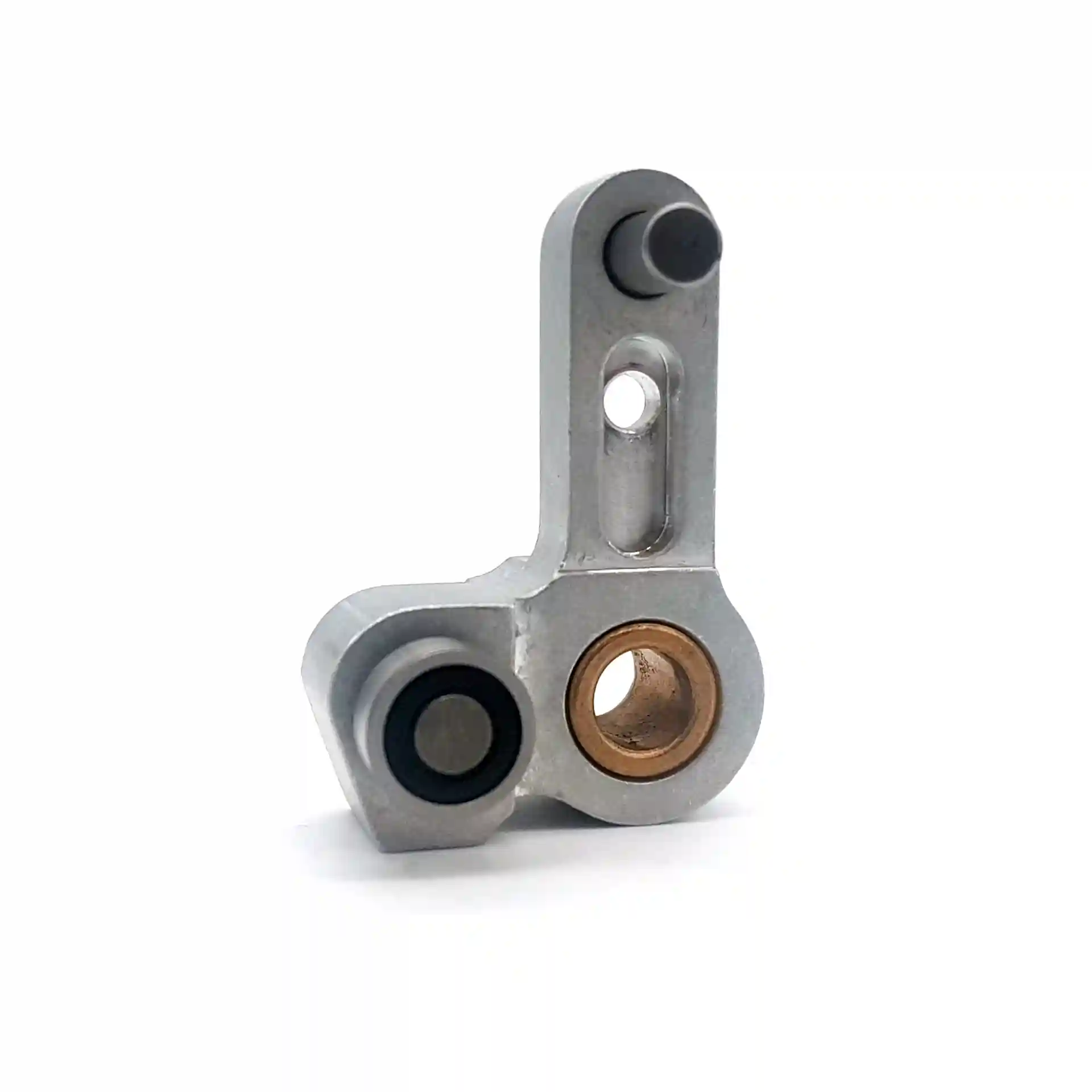

Cam Lever Complete

Product number: 270003972
Product number 2: Z-000-0744

Cam Roller

Product number: 574129
Product number 2: Z-000-0542

Cam Roller

Product number: 570556
Product number 2: Z-000-0524

For: cushioned presser foot – SGFA, SGZA and SGVA. Cam Roller (ZSK order number 570 556). Fitted in → ZSK flatbed embroidery machines SGFA/MxFx/LxFx/XxFx/YxFA/ZxFA – spare part catalogue (PDF), assemblies: Stoffdrücker-Abfangeinrichtung – PDF page 71 Fitted in → ZSK special embroidery machine SGVA – spare part catalogue (PDF), assemblies: Stoffdrücker-Abfangeinrichtung – PDF page 79 Fitted in → ZSK special embroidery machine SGZA, YGZA, ZBZA – spare part catalogue (PDF), assemblies: Stoffdrücker-Abfangeinrichtung – PDF page 73 Also included in the 3D spare part catalogue: ZSK RACER 0224-700D, RACER 1XL, RACER 4 S II, RACER 4 S SF, RACER 6 S II, RACER 6 W, RACER COMPACT TWIN, RACER H 0118-495, RACER II 8W, SPRINT 6, SPRINT 7, SPRINT 7 MAX, SPRINT 7L, SPRINT 7L MAX, SPRINT 7XL, SPRINT 8 and SPRINT NX. You will find the 3D models and all spare part catalogues at → spare part catalogues.

Catch

Product number: 271003564
Product number 2: Z-008-8424

Spare part for ZSK embroidery machines – RACER COMPACT TWIN, RACER H 0118-495, RACER II 8W and more. Catch (ZSK order number 271 003 564). Suitable for ZSK RACER COMPACT TWIN, RACER H 0118-495, RACER II 8W and SPRINT 8.

Catch

Product number: 270003555
Product number 2: Z-000-0072

Catch

Product number: 270003803
Product number 2: Z-000-0725

Catch Bar Complete

Product number: 990041907
Product number 2: Z-000-1041

For: front panel – SGFA, JAFA, SGZA and more. Catch Bar Complete (ZSK order number 990 041 907). Fitted in the following spare part catalogues (PDF): ZSK tubular arm embroidery machines JAFA/JNFA – assembly Stirnblech, FA/FB-Kopf, PDF page 71 ZSK special embroidery machine JCZA – assembly Stirnblech, FA/FB-Kopf, PDF page 81 ZSK flatbed embroidery machines SGFA/MxFx/LxFx/XxFx/YxFA/ZxFA – assembly Stirnblech, FA/FB-Kopf, PDF page 77 ZSK special embroidery machine SGVA – assembly Stirnblech, FA/FB-Kopf, PDF page 101 ZSK special embroidery machine SGZA, YGZA, ZBZA – assembly Stirnblech, FA/FB-Kopf, PDF page 93 ZSK tubular arm embroidery machine SPRINT 4 – assembly Stirnblech, FA-Kopf, PDF page 49 ZSK tubular arm embroidery machine SPRINT 5.1 – assembly Stirnblech, FA/FB-Kopf, PDF page 51 Also included in the 3D spare part catalogue: ZSK RACER 6 W and SPRINT NX. You will find the 3D models and all spare part catalogues at → spare part catalogues.

Catch Hook with Bolt

Product number: 376020802
Product number 2: Z-000-0967

Catch with Sleeve

Product number: 270003991
Product number 2: Z-000-0748

For: needle block – SGFA, JAFA, SGZA and more. Catch with Sleeve (ZSK order number 270 003 991). Fitted in the assembly "Nadelblock" of the following spare part catalogues (PDF): ZSK tubular arm embroidery machines JAFA/JNFA – PDF page 69 ZSK special embroidery machine JCZA – PDF page 79 ZSK flatbed embroidery machines SGFA/MxFx/LxFx/XxFx/YxFA/ZxFA – PDF page 75 ZSK special embroidery machine SGVA – PDF page 99 ZSK special embroidery machine SGZA, YGZA, ZBZA – PDF page 91 ZSK tubular arm embroidery machine SPRINT 5.1 – PDF page 49 Also included in the 3D spare part catalogue: ZSK RACER 1XL, RACER 4 S II, RACER 6 S II, RACER COMPACT TWIN, RACER H 0118-495, RACER II 8W, SPRINT 7, SPRINT 7 MAX, SPRINT 7L, SPRINT 7L MAX, SPRINT 7XL and SPRINT 8. You will find the 3D models and all spare part catalogues at → spare part catalogues.

Compression Spring

Product number: 502516
Product number 2: Z-000-8240

For: presser foot – leather and cap embroidery, puffy up to 4 mm. "Leather" pressure spring (ZSK order number 502 516). Stronger presser foot spring, recommended for embroidery on leather and on caps; required for 3D (puffy) embroidery up to 4 mm foam height. Related variants: standard spring 502 450, puffy spring 502 526 for more than 4 mm.

Compression Spring

Product number: 502450
Product number 2: Z-000-0455

Compression Spring D-154

Product number: 502432
Product number 2: Z-000-8202

COMPRESSION SPRING

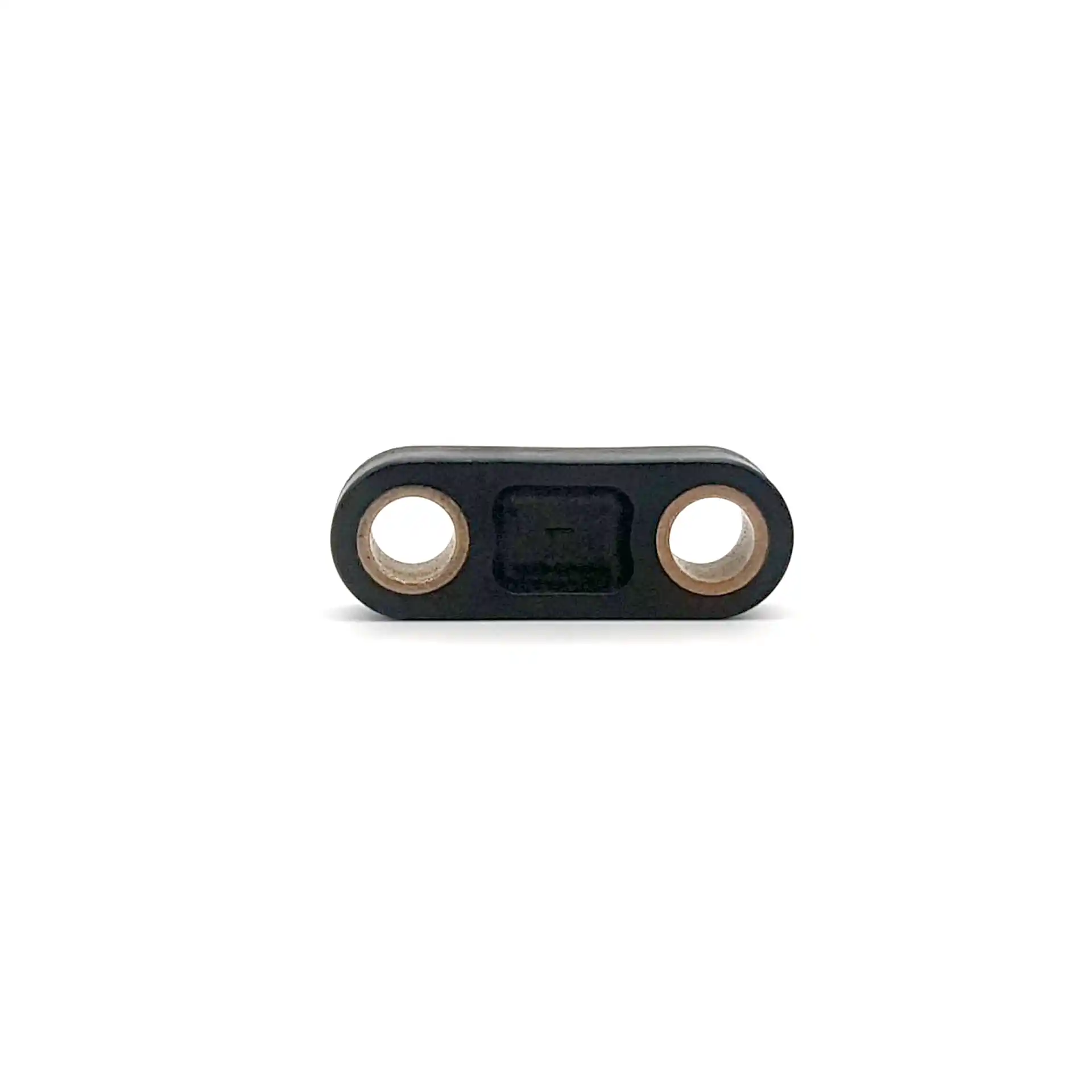

Connecting Rod Complete

Product number: 270003817
Product number 2: Z-000-0728

Conversion Kit Cap Protection

Product number: 361998907
Product number 2: Z-009-8272

Conversion Kit Cap Protection. Upgrade for the protective bracket 361.028.248 ZSK embroidery machines are equipped with a protective bracket ( 361.028.248 ) to provide sufficient space for the catcher. On some cap types, this can cause tension on the cap skirt and impair the stitch quality near the skirt. This upgrade provides more space for the cap and ensures improved stitch quality. Conversion kit for the ZSK embroidery head F Contents: 1 x Deflector GRP 2 x countersunk screws

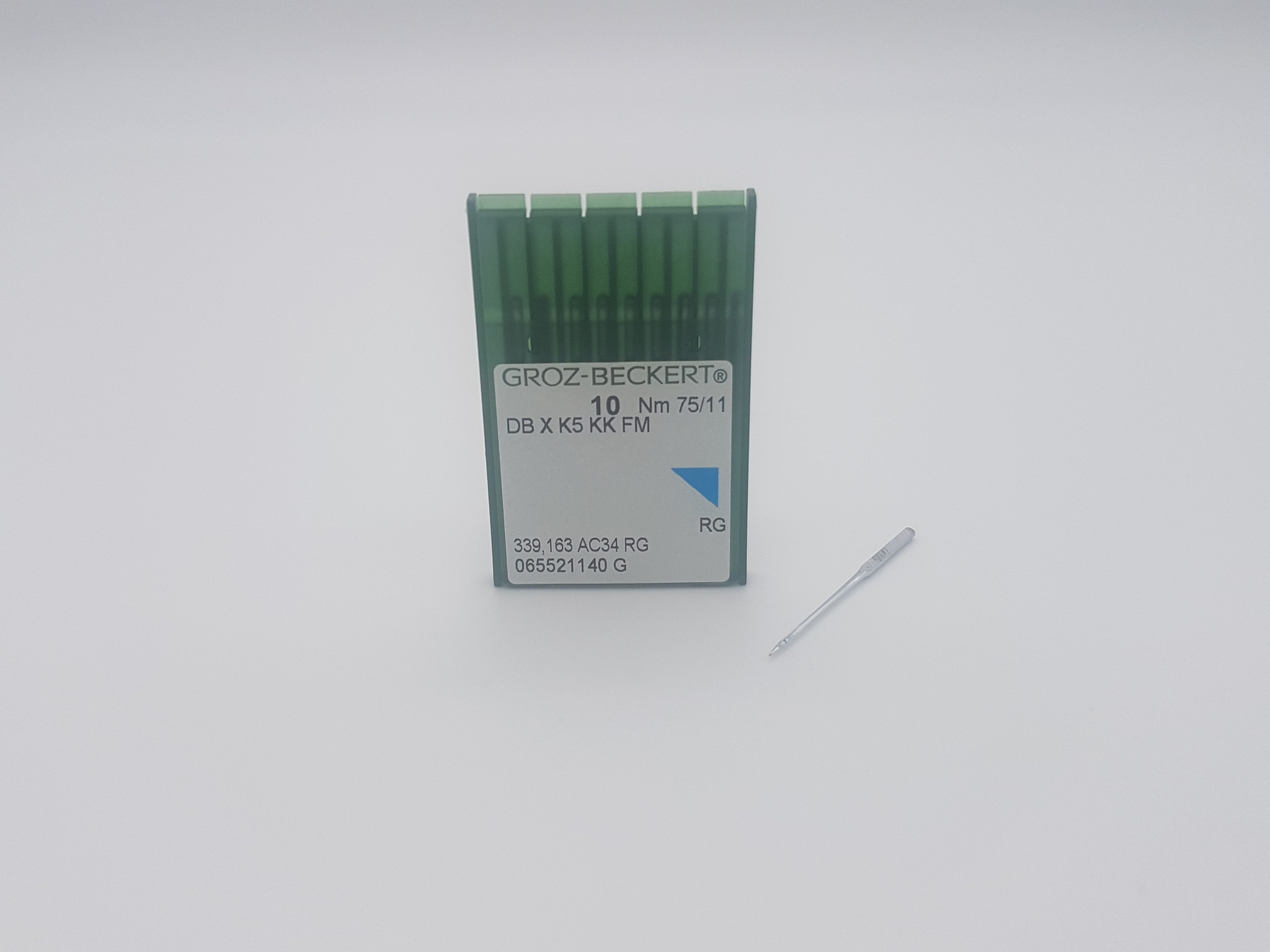

DBXK5 KK RG 75

Product number: 270989202
Product number 2: Z-000-2483

Embroidery needle for embroidery machines – system DBxK5 KK. Needle system DBxK5 KK in size 75/11 with RG point. Short shank.

Disc

Product number: 270003558
Product number 2: Z-000-2046

Disc 105

Product number: 271003559
Product number 2: Z-000-0095

Eccentric Bearing

Product number: 280003911
Product number 2: Z-004-2015

ECCENTRIC BEARING
