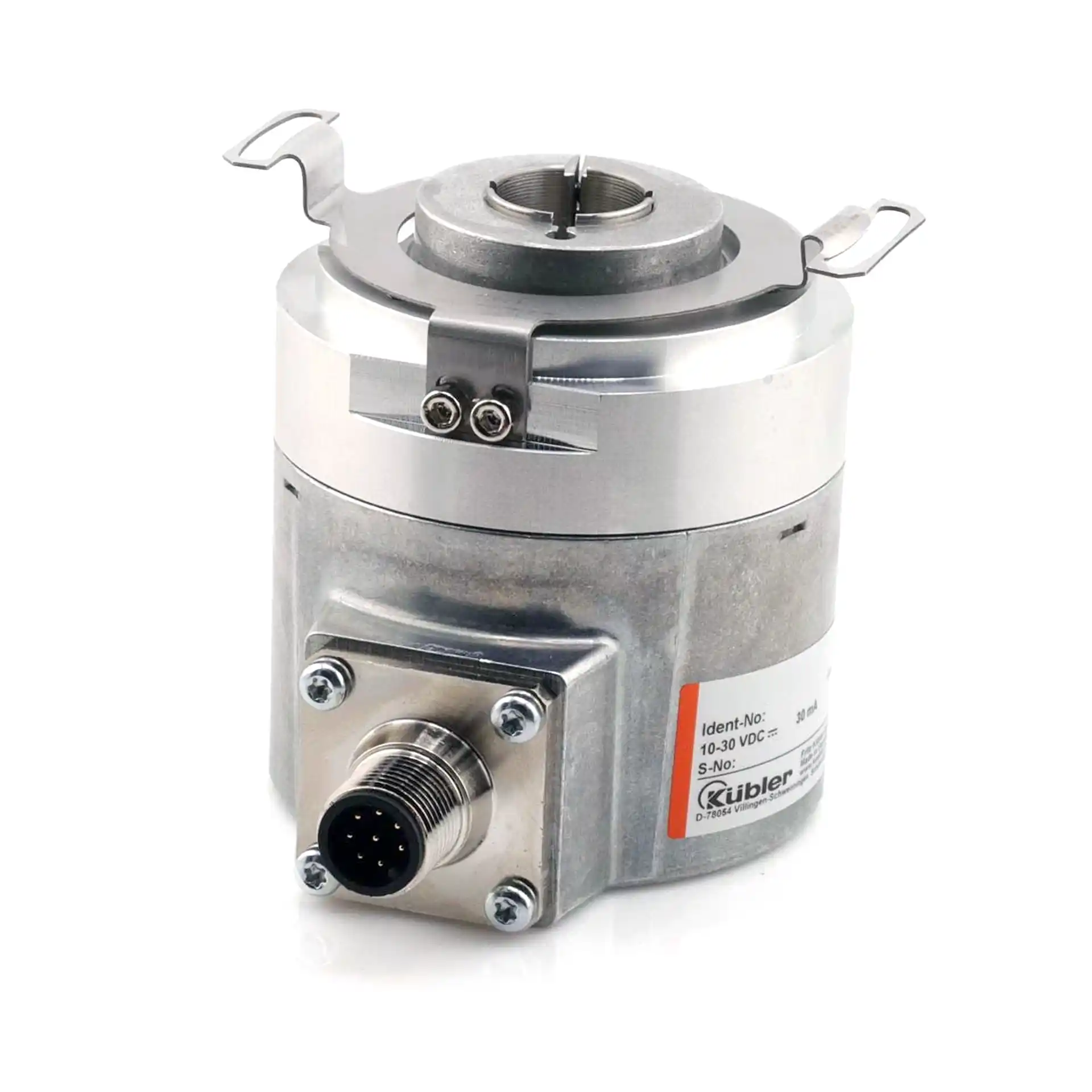

Spare part for ZSK embroidery machines – RACER 4 S II, RACER 4 S SF, RACER 6 S II and more. Absolute Encoder (ZSK order number 396 260 008). Suitable for ZSK RACER 4 S II, RACER 4 S SF, RACER 6 S II, RACER COMPACT TWIN, RACER H 0118-495, RACER II 8W, RACER R1 W, RACER R4 W, SPRINT 7 MAX, SPRINT 7L MAX, SPRINT 8 and SPRINT R9.

ABSOLUTE MULTITURN ENCODER

The shaft encoder, also called rotary encoder, is for MSCI/J machines..

For: Driving shaft above/below left side Type 3 – SGFA, SGZA, MCSW and more. Absolute Rotary Encoder Monoturn (ZSK order number 396 261 001). Fitted in the following spare part catalogues (PDF): ZSK embroidery machines MCSW/xCSL – assembly Antriebswelle oben/unten linke Seite Typ 3, PDF page 21 ZSK flatbed embroidery machines SGFA/MxFx/LxFx/XxFx/YxFA/ZxFA – assembly Antriebswelle oben/unten linke Seite Typ 3, PDF page 37 ZSK special embroidery machine SGVA – assembly Antriebswelle oben/unten linke Seite Typ 3, PDF page 29 ZSK special embroidery machine SGZA, YGZA, ZBZA – assembly Antriebswelle oben/unten linke Seite Typ 3, PDF page 29 ZSK tubular arm embroidery machine SPRINT 4 – assembly Hauptantrieb, PDF page 17 ZSK tubular arm embroidery machine SPRINT 5.1 – assembly Hauptantrieb, PDF page 17 Also included in the 3D spare part catalogue: ZSK RACER R1 W, RACER R4 W and SPRINT R9. You will find the 3D models and all spare part catalogues at → spare part catalogues.

For: Legekopf – MCSW. Absolute Rotary Encoder Monoturn (ZSK order number 396 260 004). Fitted in → ZSK embroidery machines MCSW/xCSL – spare part catalogue (PDF), assemblies: Kragarm – PDF page 99 Legekopf, L-Kopf – PDF page 67
