Spare part for ZSK embroidery machines – RACER 4 S II, RACER 4 S SF, RACER 6 S II and more. Absolute Encoder (ZSK order number 396 260 008). Suitable for ZSK RACER 4 S II, RACER 4 S SF, RACER 6 S II, RACER COMPACT TWIN, RACER H 0118-495, RACER II 8W, RACER R1 W, RACER R4 W, SPRINT 7 MAX, SPRINT 7L MAX, SPRINT 8 and SPRINT R9.

ABSOLUTE MULTITURN ENCODER

The shaft encoder, also called rotary encoder, is for MSCI/J machines..

For: Driving shaft above/below left side Type 3 – SGFA, SGZA, MCSW and more. Absolute Rotary Encoder Monoturn (ZSK order number 396 261 001). Fitted in the following spare part catalogues (PDF): ZSK embroidery machines MCSW/xCSL – assembly Antriebswelle oben/unten linke Seite Typ 3, PDF page 21 ZSK flatbed embroidery machines SGFA/MxFx/LxFx/XxFx/YxFA/ZxFA – assembly Antriebswelle oben/unten linke Seite Typ 3, PDF page 37 ZSK special embroidery machine SGVA – assembly Antriebswelle oben/unten linke Seite Typ 3, PDF page 29 ZSK special embroidery machine SGZA, YGZA, ZBZA – assembly Antriebswelle oben/unten linke Seite Typ 3, PDF page 29 ZSK tubular arm embroidery machine SPRINT 4 – assembly Hauptantrieb, PDF page 17 ZSK tubular arm embroidery machine SPRINT 5.1 – assembly Hauptantrieb, PDF page 17 Also included in the 3D spare part catalogue: ZSK RACER R1 W, RACER R4 W and SPRINT R9. You will find the 3D models and all spare part catalogues at → spare part catalogues.

For: Legekopf – MCSW. Absolute Rotary Encoder Monoturn (ZSK order number 396 260 004). Fitted in → ZSK embroidery machines MCSW/xCSL – spare part catalogue (PDF), assemblies: Kragarm – PDF page 99 Legekopf, L-Kopf – PDF page 67

Light Barrier

Light Barrier

Upgrade or retrofit kit for light barrier for the RACER / JAFA series

Light Barrier

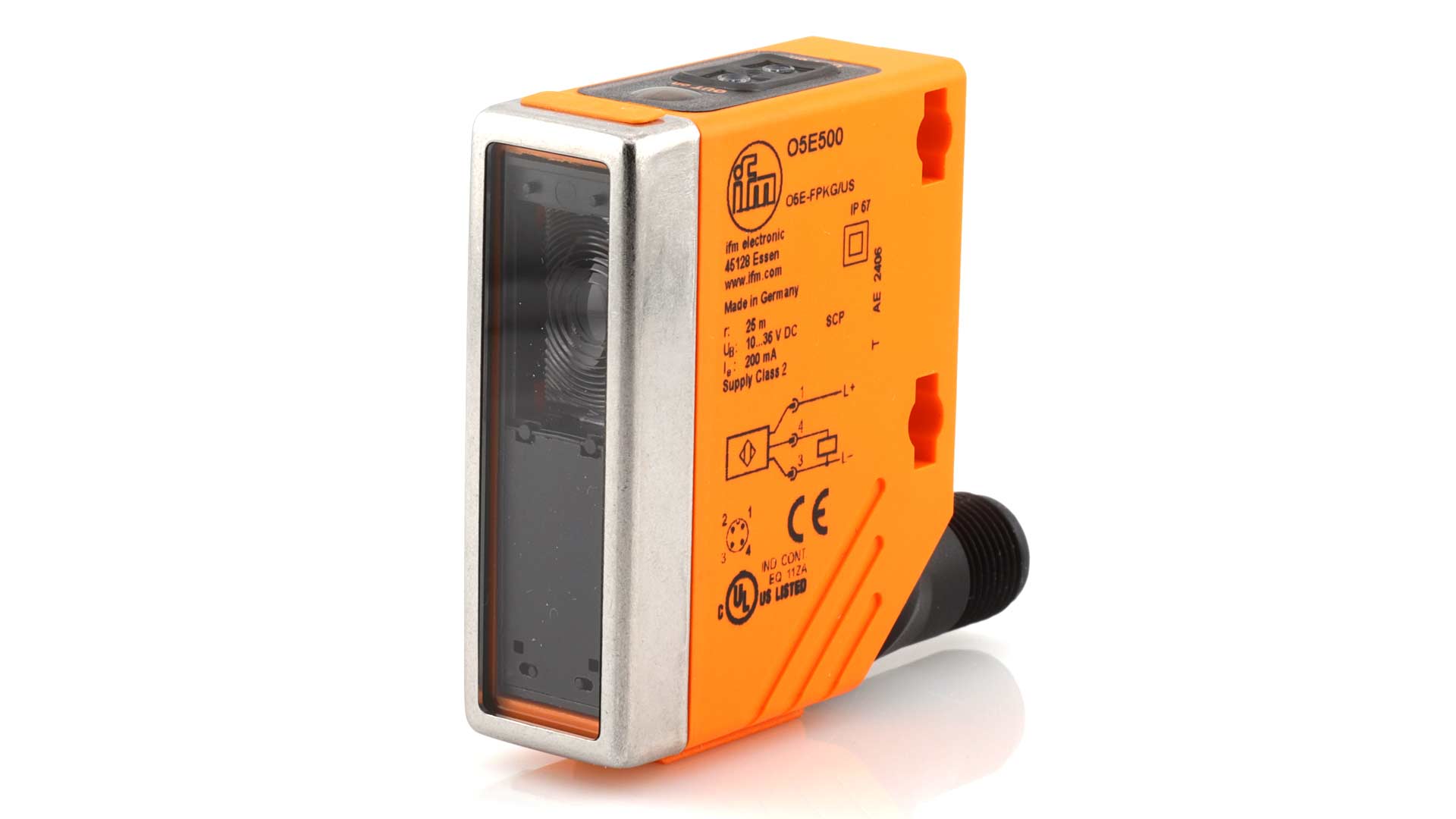

One-way photoelectric sensor receiver O5E500 ifm electronic Very long range Robust housing for use in harsh industrial environments Highly visible readiness indicator   Operating voltage [V] 10...36 DC Current consumption [mA] 10 Protection class II Polarity reversal protection yes Switching frequency DC [Hz] 1000   Note: In Germany and Switzerland, light barriers are required by law! In all other countries, this is optional. The light barrier is used to protect the machine operator. Please repair defective light barriers to ensure the safety of the user.

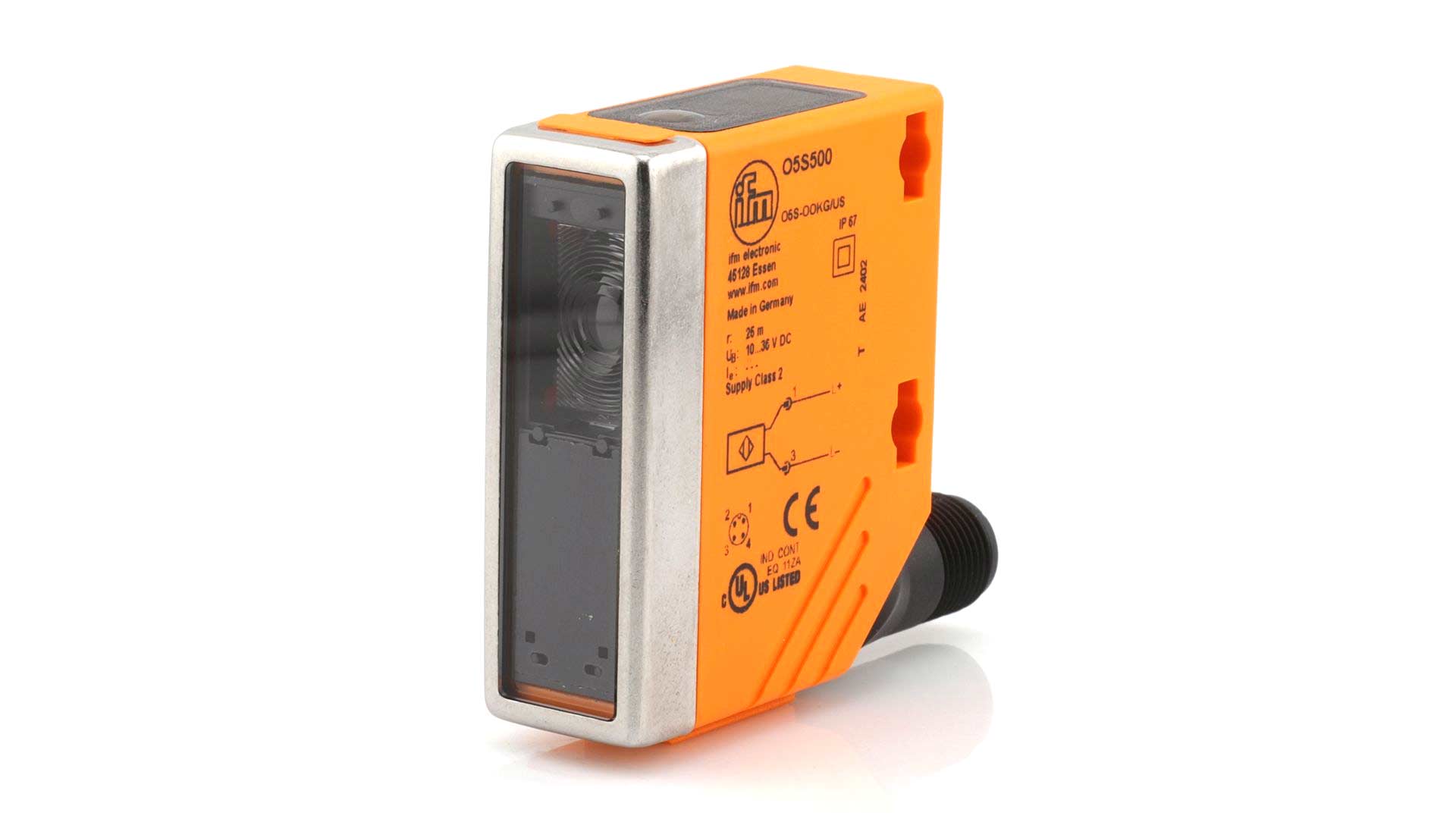

Through-beam sensor transmitter O5S500 ifm electronic. One-way photoelectric sensor transmitter O5S500   Very long range Robust housing for use in harsh industrial environments Highly visible readiness indicator   Operating voltage [V] 10...36 DC Current consumption [mA] 20 Protection class II Polarity reversal protection yes Range < 25m     Note: In Germany and Switzerland, light barriers are required by law! In all other countries, this is optional. The light barrier is used to protect the machine operator. Please repair defective light barriers to ensure the safety of the user.

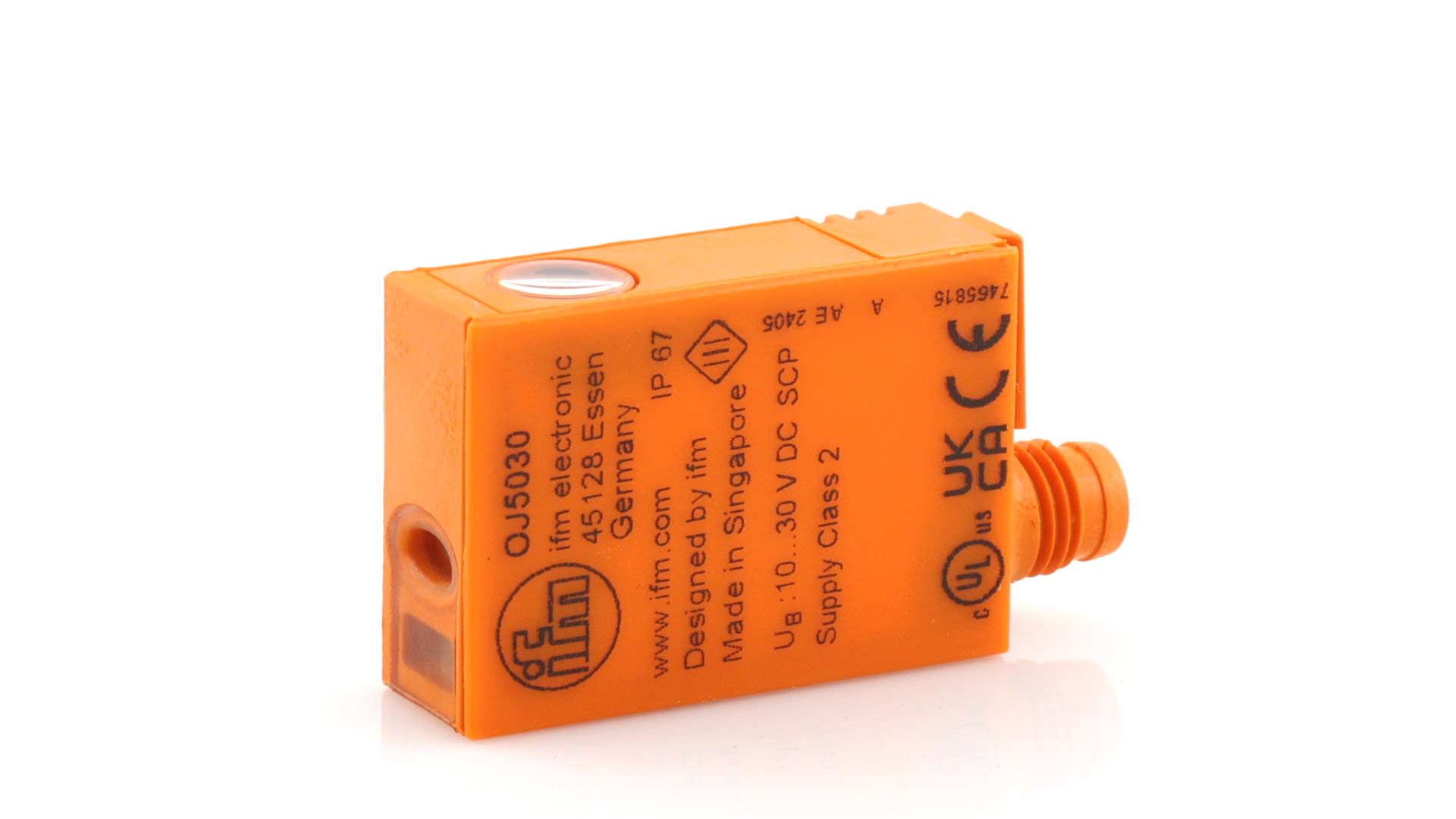

One-way photoelectric sensor transmitter OJ5030  ifm electronic   Particularly compact housing for use where space is restricted Very long range Simple alignment due to visible red light LED display to check operation, switching status and function   Operating voltage [V] 10...36 DC Current consumption [mA] < 19 Protection class III Polarity reversal protection yes Range [m] < 10     Note: In Germany and Switzerland, light barriers are required by law! In all other countries, this is optional. The light barrier is used to protect the machine operator. Please repair defective light barriers to ensure the safety of the user.
