ZSK E-Tex Board

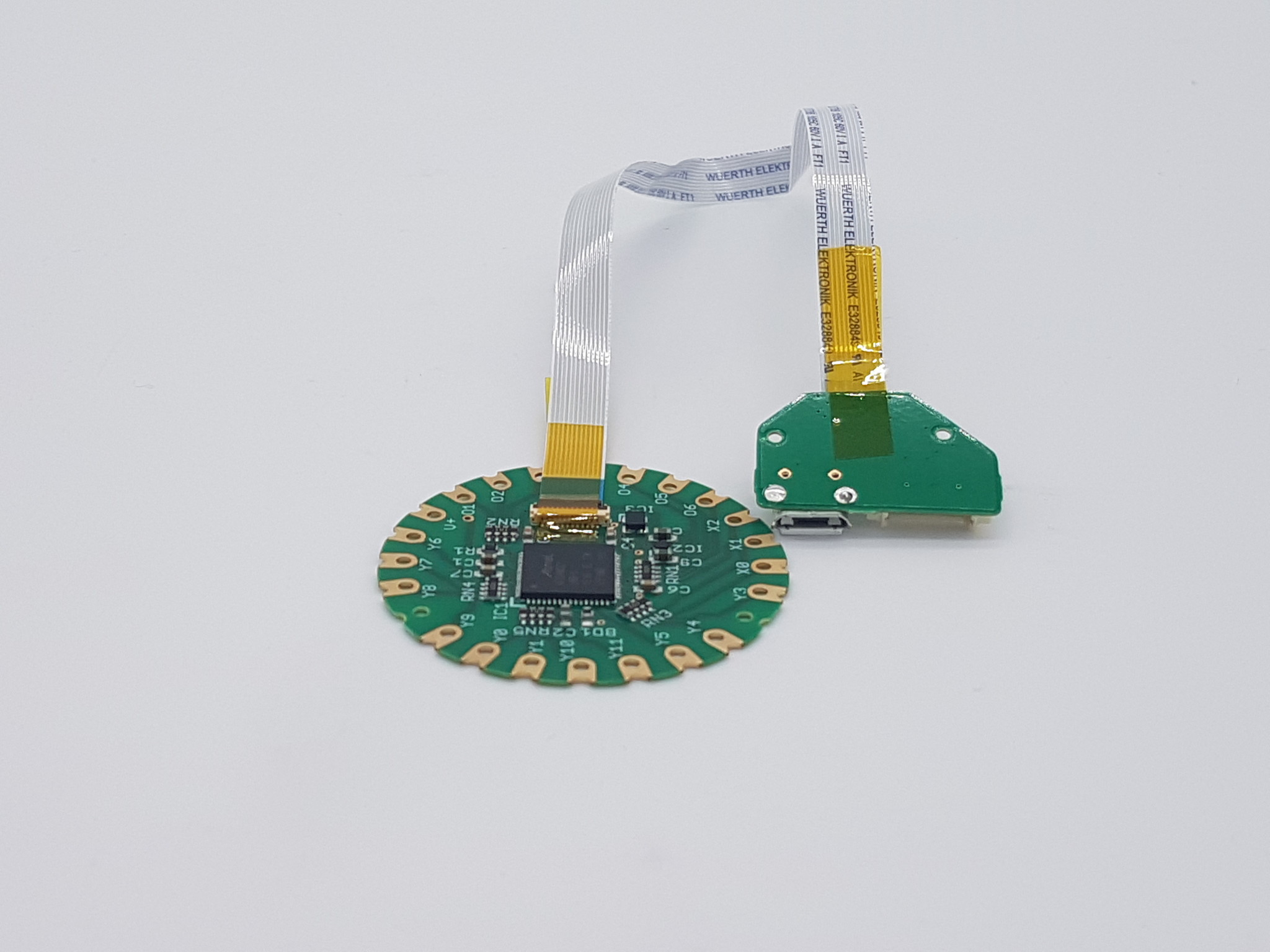

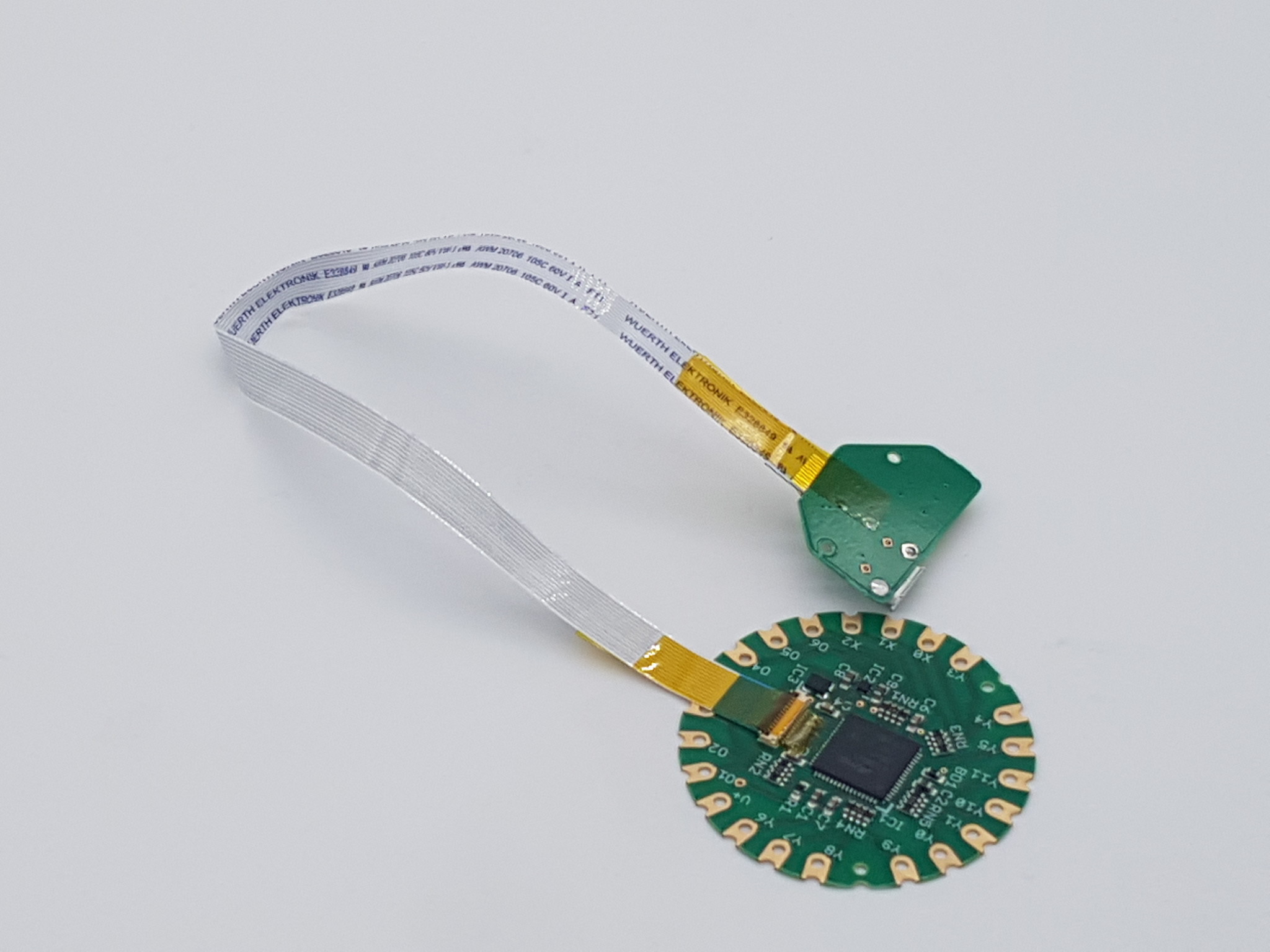

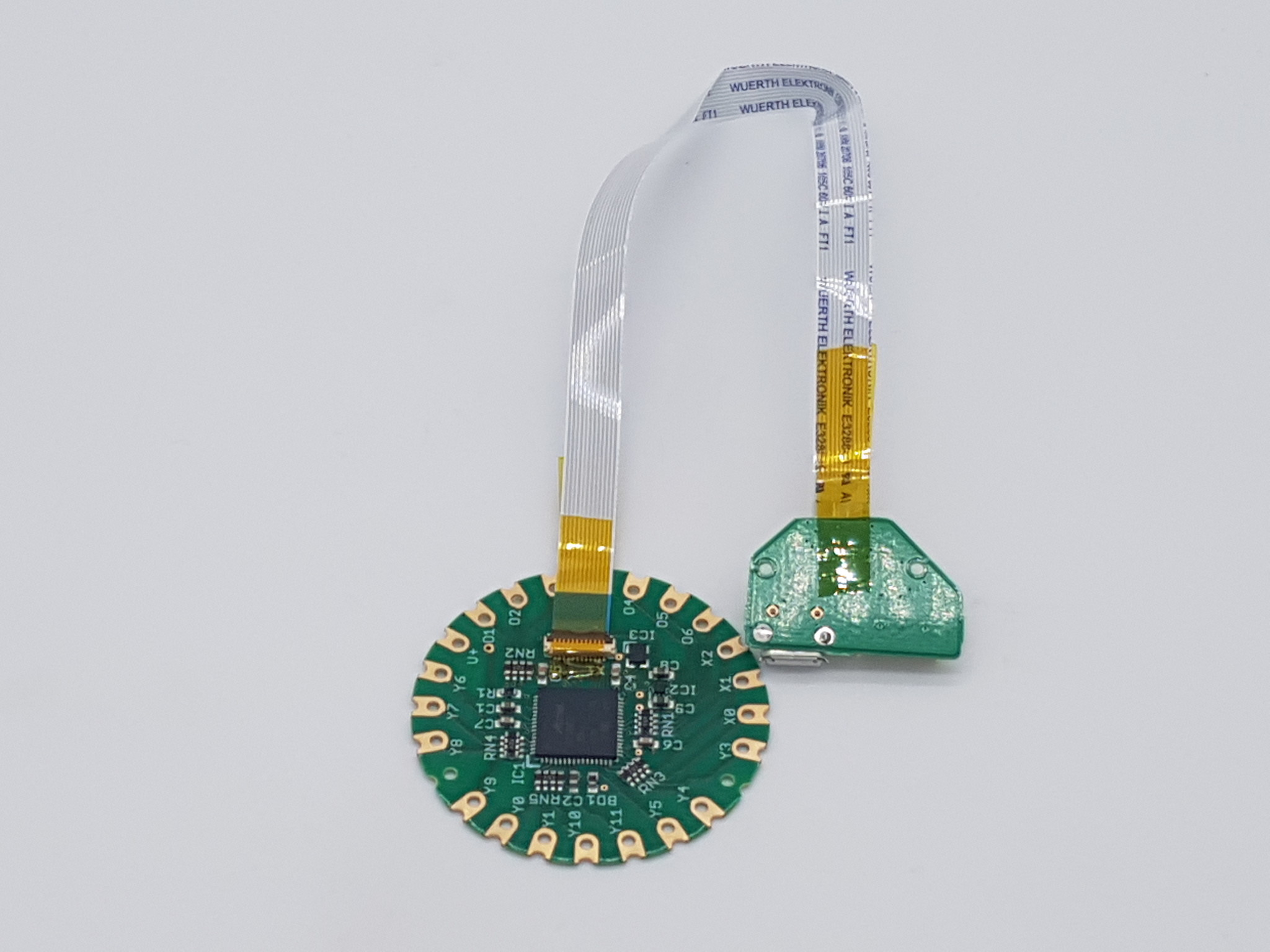

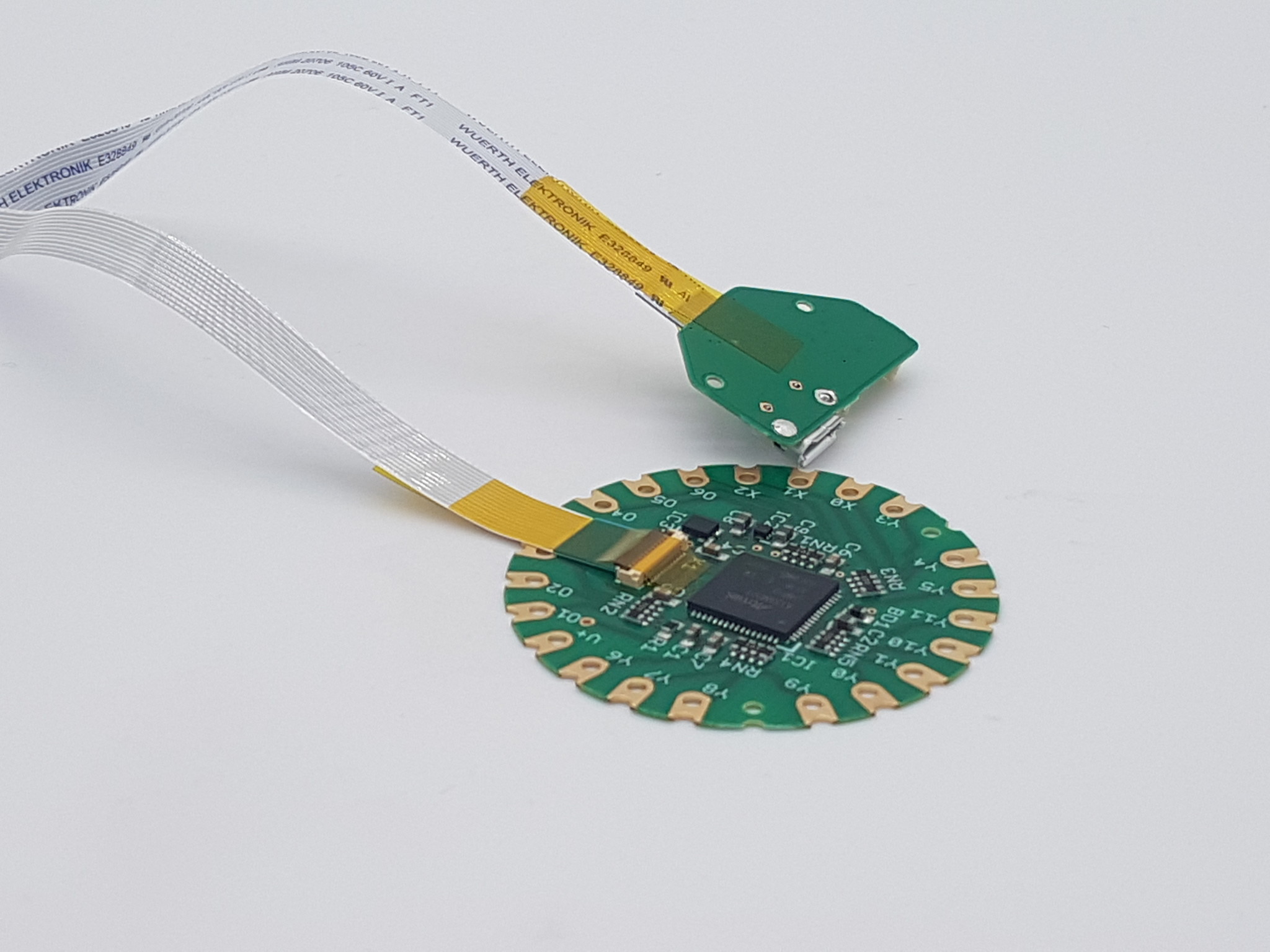

Introducing the ZSK E-Tex Board - a powerful microcontroller board that opens up a world of possibilities for creating cutting-edge Smart Textiles. It features a carefully crafted geometry and layout, developed especially for reliable integration with the ZSK embroidery machines.
With its Microchip® SAMD21 microcontroller and periferal components, the ZSK E-Tex Board allows you to connect multiple capacitive touch sensors and LEDs, such as the ZSK LED Sequin, directly to the board without the need for additional circuitry. 20 GPIO pins provide you with the flexibility to program and customize the PCB to suit the unique requirements of your project.
Please note that to program the ZSK E-Tex Board, you will need an SWD-enabled SAM-programmer and a ZSK programming cable. Alternatively, if you're looking to use the board for specific ZSK Smart Textiles applications, you can purchase a pre-programmed ZSK E-Tex Board with application-specific firmware. Additionally, we offer a ZSK E-Tex Board Development Kit that includes the ZSK E-Tex Board and everything you need for programming.
Don't have programming experience? No worries! Contact us if you're looking to use the board for specific ZSK Smart Textiles applications. Alternatively, our skilled engineers can develop custom firmware for your specific application, so you can bring your unique ideas to life with ease.
Technical Specifications:
- Dimensions:
- E-Tex board: ⌀40 mm
- Connector board: 24 mm x 16 mm
- Ribbon cable: 7 mm x 0.2 m
- Microcontroller: Microchip® ATSAMD21J16B
- I/O pins: 20
- of which 19 pins with a 100 Ohm current-limiting resistor to directly connect LEDs
- of which 11 pins can be used as capacitive touch sensors with the QTouch Library from Atmel (Microchip®)
- Connectivity: USB
- Connector type: Micro USB
- Programming interface: SWD
For more information about our technology and our service, be sure to visit www.3eSmartSolutions.de. Dive into the world of smart & e-textiles and explore the limitless creative possibilities of technical embroidery!
