T8/2 Control Unit

ZSK PoolBox – the Hub of Your Digital Embroidery Production A small device with a big impact: the ZSK PoolBox connects embroidery data, ZSK embroidery machines and production data within a standardised ZSK infrastructure. It provides central access to embroidery designs, connects ZSK embroidery machines to the network in a simple and controlled way, and supplies data for digital workflow solutions such as MY.ZSK, Production Planner, ZSK Terminal and other ZSK applications. This makes the PoolBox the central technical basis for networked ZSK production processes – today and for future digital ZSK services. Provide embroidery data centrally The PoolBox provides 32 GB of network storage for embroidery designs. The prepared folder structure with 50 preconfigured folders from p01 to p50 supports the organisation of embroidery data for machines, work areas and production processes. Additional subfolders can be created as required. Embroidery data from EPCwin, BasePac or other embroidery software can be stored centrally and loaded directly by connected ZSK embroidery machines – manually, via barcode scanner or in RINGBUFFER operation. This turns a file storage system into a production-related data source for machines, operators and digital ZSK workflow solutions. Connect machines simply and in a controlled way The PoolBox acts as a standardised gateway between the company network and the machine network. It manages its own machine network and automatically assigns IP addresses to the connected ZSK embroidery machines via the integrated DHCP server. This eliminates the need for manual IP configuration on the machines and ensures that the network connection follows a clearly defined structure specified by ZSK. Prepared for RINGBUFFER and MY.ZSK The ZSK PoolBox is prepared for RINGBUFFER operation with up to 50 ZSK embroidery machines. In this mode, the T8 control can automatically process provided embroidery data one file after another. The MY.ZSK DataCollector is already preinstalled on the PoolBox. It records production data from the connected machines and makes it available for analysis in MY.ZSK. This makes quantities, running times, machine performance and utilisation easier to evaluate. The basis for digital workflow solutions from ZSK The PoolBox is not only a storage device and gateway, but also the central data hub for digital ZSK applications. It provides machine and production data used by solutions such as MY.ZSK, Production Planner and ZSK Terminal. This creates a shared infrastructure for embroidery data, machines, orders and analysis – instead of isolated individual solutions. Technical specifications Set contents ZSK PoolBox, Ethernet switch and S/FTP patch cable Hardware Passively cooled mini PC, fanless and low-maintenance Network storage 32 GB for embroidery designs Folder structure 50 preconfigured folders p01 to p50, additional subfolders possible Network One connection to the company network, one connection to the machine network DHCP Integrated DHCP server for automatic IP assignment to the machines RINGBUFFER Prepared for up to 50 ZSK embroidery machines MY.ZSK DataCollector preinstalled Operation Designed for 24/7 operation for storage and DataCollector functions Compatibility All embroidery formats readable by the ZSK T8 control For networked embroidery production with ZSK The ZSK PoolBox is the central solution for embroidery businesses that want to network their ZSK embroidery machines, provide embroidery data centrally and make production data digitally usable. It forms the technical basis for modern, transparent and future-oriented production processes in embroidery.

The start/stop remote control simplifies all work that is not carried out in the immediate vicinity of the T8 and is associated with the operation of the start/stop buttons on the T8.  The remote control is ideal for setting work on sequin and bead embroidery devices, for example. The device saves you a lot of time by eliminating the need to walk to the T8 during work or to have a second worker available during adjustment work.

EXTENSION CABLE T8 (8 METERS)

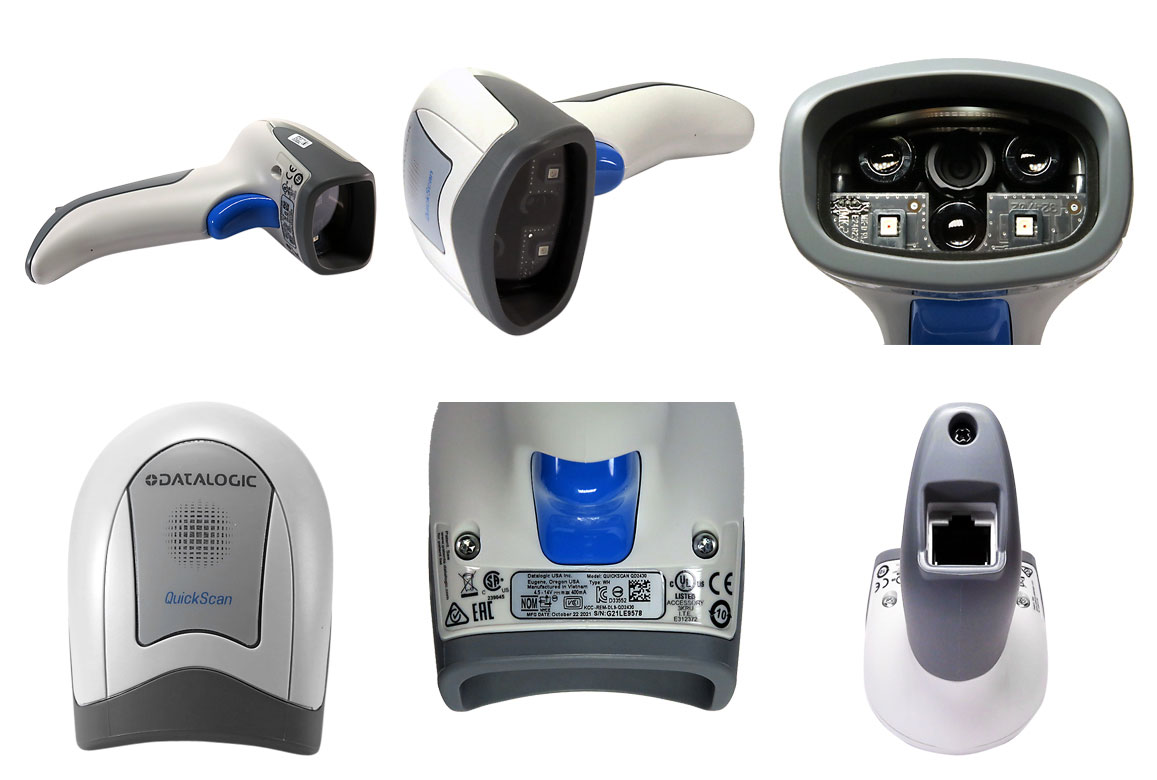

Barcode Scanner for Embroidery Businesses – Efficient Order & Material Management This wired 1D & 2D barcode scanner is the perfect solution for embroidery businesses and textile decorators looking to optimize inventory management, material tracking, and order processing. It scans QR codes, Data Matrix, PDF417, UPC/EAN, Code 128, Code 32/39, and many other barcode formats quickly and accurately. Ideal for Production & Logistics in Embroidery Whether scanning order sheets, thread spools, embroidery frames, or machine accessories, this scanner helps speed up workflows and reduce errors. It can also read digital barcodes directly from screens (PCs, tablets, smartphones), making it ideal for digital orders and production management. Easy Integration into Existing Systems With plug-and-play USB connectivity, the scanner is compatible with ERP systems, production software, and inventory management solutions. It supports multiple languages, including English, German, French, Spanish, and Italian.

ZSK-BARCODE-SCANNER WITH CABLE

ZSK-BARCODE-SCANNER WITH CABLE

T8-2D Control Unit Complete This T8-2D control unit serves as a complete replacement part for a defective or damaged T8-2 of a ZSK embroidery machine. It differs from the T8-2 Item No.: 396.041.018 only by a slightly different colour shade; the functionality is identical. Characteristics: 3 USB ports (e.g. for barcode scanner, USB storage, mouse or keyboard) 1 Ethernet port (RJ45) for network connections 1 integrated 25-pin D-sub connector for external control consoles Labelling: in English Note: After replacement, the T8-2 must be equipped with the latest T8 software. The software is available for download here: zsk.de/t8software
